SUNNYSKY X2212 1250KV III (V3) Brushless Motor 59g

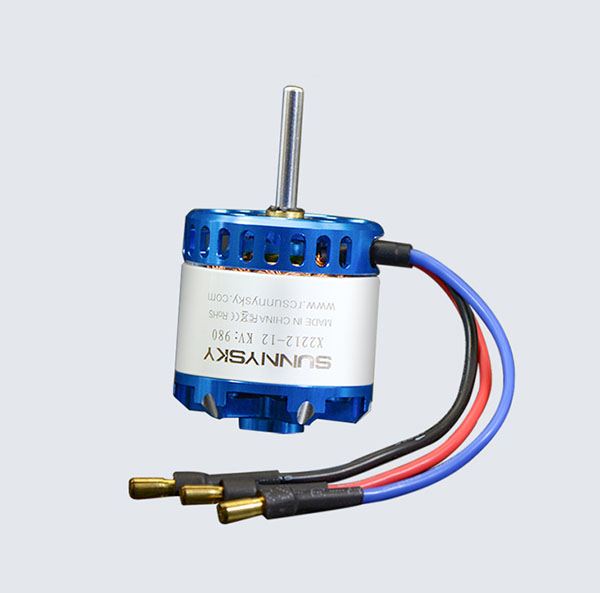

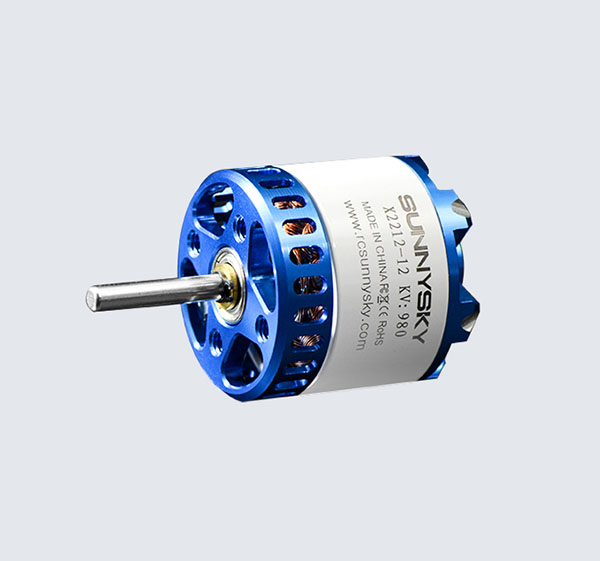

注.写真はKV値のみ異なる同種のモーターです。
SUNNYSKY X2212 1250KV III (V3) Brushless Motor
| Specifications | X2212 | ||||||
| Stator Diameter | 22mm | ||||||
| Stator Thickness | 12mm | ||||||
| No.of Stator Slots | 12 | ||||||
| No.of Rotor Poles | 14 | ||||||
| Motor Kv | 1250 | ||||||
| NO-Load Current(A/10V) | 0.8A | ||||||
| Motor Resistance | 54mΩ | ||||||
| Max Continuous Current | 35A/30s | ||||||
| Max Continuous Power | 518W | ||||||
| Weight | 59g | ||||||
| Rotor Diameter | 27.5mm | ||||||
| Body Length | 30mm | ||||||
| Max Lipo Cell | 3-4S | ||||||
| ESC | 30-40A | ||||||
| Recommend Prop(inch) | APC9047 APC9060 APC8060 APC7060 | ||||||
|
Application recommendation: AEROBATIC airplane flight weight 750g (3S 9047\9060\9045\8060） 3D airplane flight weight 550g (3S 9047\9045) |
|||||||
| Prop | Volts | Amps | Thrust(g) | Watts (W) | Efficiency (g/W) |
RPM | Full throttle under load temp. |
| (inch) | (V) | (A) | |||||
| APC9047 | 11.1 | 0.8 | 100 | 8.88 | 11.26 | 3215 | |
| 2 | 200 | 22.2 | 9.01 | 4595 | |||
| 3.3 | 300 | 36.63 | 8.19 | 5659 | |||
| 5.1 | 400 | 56.61 | 7.07 | 6569 | |||
| 6.8 | 500 | 75.48 | 6.62 | 7337 | |||
| 8.8 | 600 | 97.68 | 6.14 | 8041 | |||
| 10.9 | 700 | 120.99 | 5.79 | 8934 | |||
| 13.5 | 800 | 149.85 | 5.34 | 9510 | |||
| 16 | 900 | 177.6 | 5.07 | 10102 | |||
| 18.9 | 1000 | 209.79 | 4.77 | 10765 | |||
| 23.6 | 1220 | 261.96 | 4.66 | 11475 | 65℃ 10min | ||
| APC9045 | 11.1 | 0.9 | 100 | 9.99 | 10.01 | 3451 | |
| 2.1 | 200 | 23.31 | 8.58 | 4722 | |||
| 3.6 | 300 | 39.96 | 7.51 | 5767 | |||
| 5.1 | 400 | 56.61 | 7.07 | 6665 | |||
| 6.9 | 500 | 76.59 | 6.53 | 7409 | |||
| 9 | 600 | 99.9 | 6.01 | 8035 | |||
| 11 | 700 | 122.1 | 5.73 | 8581 | |||
| 13.5 | 800 | 149.85 | 5.34 | 9286 | |||
| 16.2 | 900 | 179.82 | 5.01 | 9690 | |||
| 19.2 | 1000 | 213.12 | 4.69 | 10170 | |||
| 25.5 | 1210 | 283.05 | 4.27 | 11234 | 63℃ 10min | ||
| APC9060 | 11.1 | 0.9 | 100 | 9.99 | 10.01 | 3185 | |
| 2.2 | 200 | 24.42 | 8.19 | 4414 | |||
| 3.9 | 300 | 43.29 | 6.93 | 5287 | |||
| 5.7 | 400 | 63.27 | 6.32 | 6129 | |||
| 7.9 | 500 | 87.69 | 5.70 | 6765 | |||
| 10.1 | 600 | 112.11 | 5.35 | 7390 | |||
| 12.5 | 700 | 138.75 | 5.05 | 7881 | |||
| 15 | 800 | 166.5 | 4.80 | 8393 | |||
| 18.3 | 900 | 203.13 | 4.43 | 8990 | |||
| 22 | 1000 | 244.2 | 4.10 | 9402 | |||
| 25.5 | 1100 | 283.05 | 3.89 | 9887 | |||
| 31.2 | 1290 | 346.32 | 3.72 | 10547 | 60℃ 10min | ||
| APC8060 | 11.1 | 1.2 | 100 | 13.32 | 7.51 | 3829 | |
| 3 | 200 | 33.3 | 6.01 | 5533 | |||
| 5.1 | 300 | 56.61 | 5.30 | 6544 | |||
| 7.1 | 400 | 78.81 | 5.08 | 7561 | |||
| 9.2 | 500 | 102.12 | 4.90 | 8315 | |||
| 12 | 600 | 133.2 | 4.50 | 9094 | |||
| 15.6 | 700 | 173.16 | 4.04 | 9840 | |||
| 18.7 | 800 | 207.57 | 3.85 | 10403 | |||
| 24 | 950 | 266.4 | 3.57 | 11277 | |||
| 14.8 | 0.9 | 100 | 13.32 | 7.51 | 3897 | ||
| 2.2 | 200 | 32.56 | 6.14 | 5490 | |||
| 3.7 | 300 | 54.76 | 5.48 | 6622 | |||
| 5.4 | 400 | 79.92 | 5.01 | 7560 | |||
| 7.1 | 500 | 105.08 | 4.76 | 8484 | |||
| 9.1 | 600 | 134.68 | 4.46 | 9134 | |||
| 12.1 | 700 | 179.08 | 3.91 | 9908 | |||
| 15.15 | 800 | 224.22 | 3.57 | 10486 | |||
| 18.3 | 900 | 270.84 | 3.32 | 11119 | |||
| 22.5 | 1000 | 333 | 3.00 | 11586 | |||
| 25.4 | 1100 | 375.92 | 2.93 | 12147 | |||
| 29.3 | 1200 | 433.64 | 2.77 | 12573 | |||
| 34.8 | 1350 | 515.04 | 2.62 | 13427 | 77℃ 30S | ||
